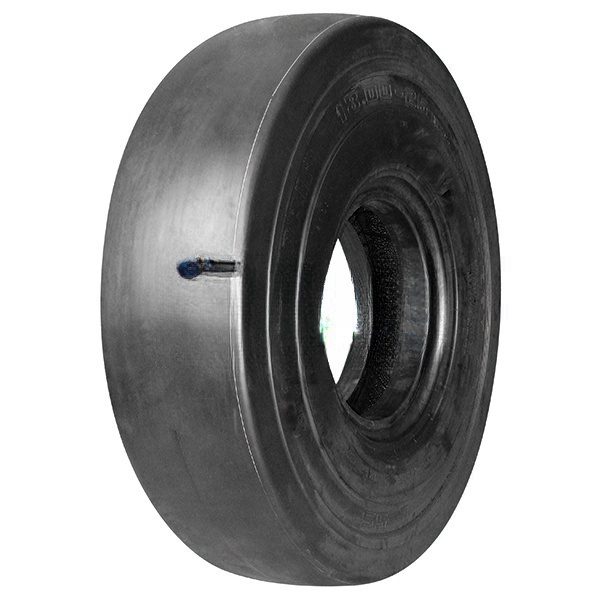

L5S
Details
Underground handling, shuttle application
Extra deep tread depth provides long tread life at extreme confidence
Smooth or smooth tread design provides maximum damage resistance of rock types
Features Aralon cut-resistant circuit breaker structure provides higher strength and durability without sacrificing heat resistance
| Dimensions | PR | type | total diameter (mm) | Section width (mm) | Standard rims | inflation pressure (kpa) | Maximum load (kgs) |
| 10.00-20 | 14PR | TT/TL | 1069 | 279 | 8.00 | 650 | 4250 |
| 12.00-20 | 20PR | TT/TL | 1145 | 315 | 8.50 | 875 | 6350 |
| 12.00-24 | 20PR | TT/TL | 1245 | 315 | 8.50V | 825 | 6900 |
| 14.00-24 | 24PR | TT/TL | 1370 | 375 | 10.00W | 850 | 9500 |
| 16.00-25 | 28PR | TL | 1395 | 430 | 11.25/2.0 | 750 | 11500 |
| 18.00-25 | 32PR | TL | 1666 | 523 | 13.00/2.5 | 750 | 15000 |
| 17.5-25 | 20PR | TL | 1350 | 445 | 14.00/1.5 | 800 | 8250 |
| 20.5-25 | 20PR | TL | 1490 | 520 | 17.00/2.0 | 450 | 9500 |
| 23.5-25 | 24PR | TL | 1615 | 595 | 19.50/2.5 | 475 | 12500 |
| 26.5-25 | 32PR | TL | 1798 | 673 | 22.00/3.0 | 475 | 15500 |
| 29.5-25 | 36PR | TL | 1875 | 750 | 25.00/3.5 | 550 | 21200 |
| 29.5-29 | 36PR | TL | 1975 | 750 | 25.00/3.5 | 550 | 22000 |
